The Ribbon#

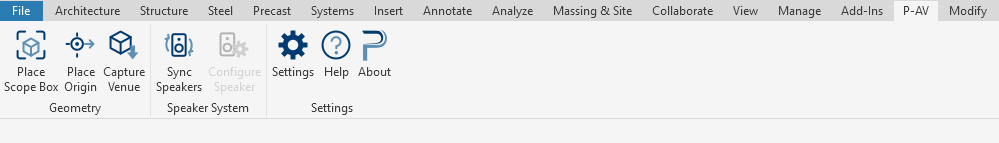

Performance AV adds a P-AV tab containing three panels.
Geometry#
The capture workflow, arranged left to right in the order it is used.
| Button | Function |
|---|---|
| Place Scope Box | Names a venue and runs Revit's scope box tool to draw its bounds. Runs in a plan view. More |
| Place Origin | Places the origin that sets the venue's export origin and axes. More |
| Capture Venue | Finds the surfaces enclosing the venue and exports them to DWG. More |
| Remove Capture | Deletes the capture surfaces retained in the model. Available when the model contains them. More |
Speaker System#
| Button | Function |
|---|---|
| Load Speakers | Loads the generic speaker families installed with Performance AV into the project. More |
| Sync Speakers | Brings loudspeaker positions and aiming in from an EASE .xld file. More |
| Remap Speakers | In the Sync Speakers drop-down. A sync with the matching dialog always shown. More |
| Configure Speaker | Prepares a loudspeaker family for the exchange. Runs in the Family Editor. More |
Settings#
| Button | Function |
|---|---|
| Settings | Opens the Settings window. More |
| Help | Opens this help site. |
| About | Reports the installed version and the licence. |
Greyed-out buttons#
No licence. Where the trial has expired and no key is active, all commands except Settings, Help and About are unavailable.
Context. Most commands require a project to be open. Configure Speaker runs in the Family Editor and is unavailable in a project. Remove Capture is available only when the model contains capture geometry.
